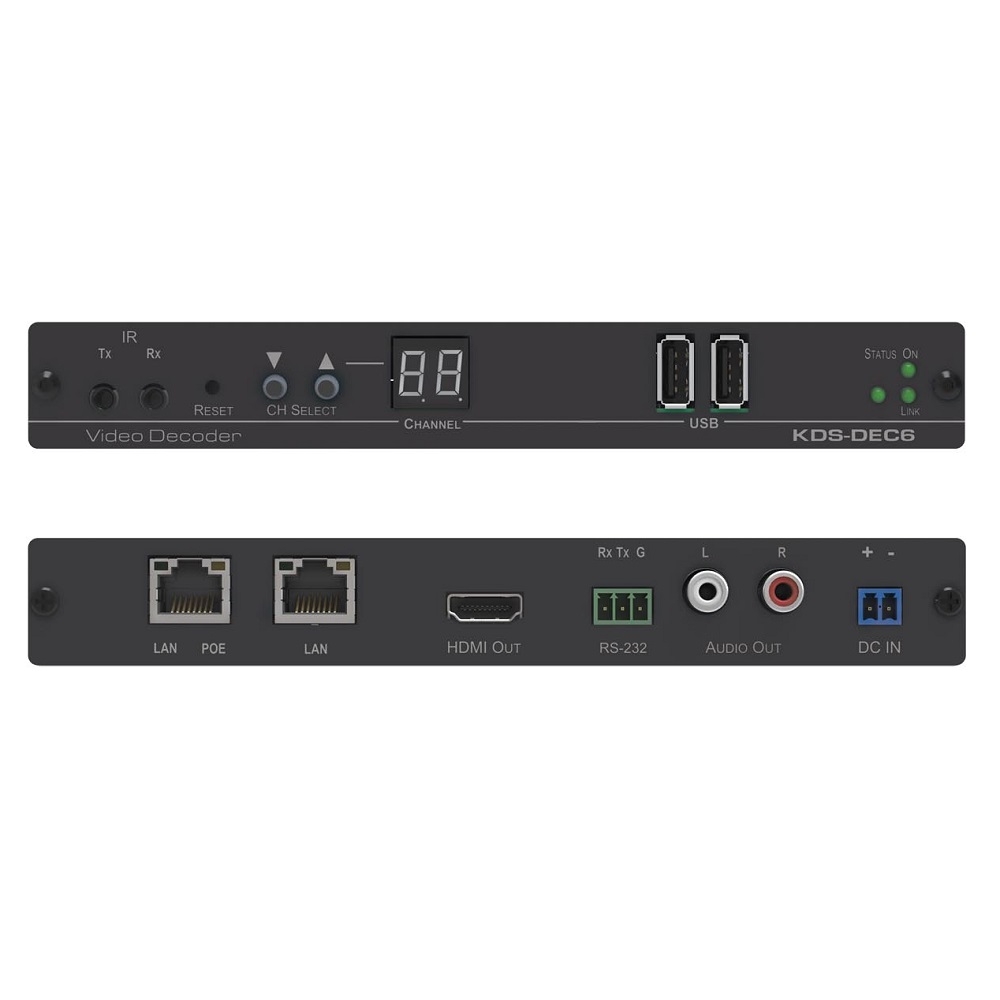

Thiết bị giải mã tín hiệu hình ảnh KDS-DEC6

Thiết bị giải mã tín hiệu hình ảnh KDS-DEC6

Mô tả ngắn

4K60 4:2:0 HDCP 2.2 Video Decoder
Analog audio embedding/de–embedding
RS–232/IR/USB extension
16x16 video wall
Reliable KVM–over IP
Control via OSD menu, embedded web UI, and open API
Over standard 1G network
Managed by Kramer Network

liên hệ mua hàng
Hotline: 0918 642 886

The KDS−DEC6 decoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS−232, USB over IP with HDCP 2.2 in unicast (one−to−one) or multicast (many−to−many) configurations.



  • - Video Support — HDMI 4K@60Hz (4:2:0).

  • - Audio Support — HDMI/line-in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio.

  • - Virtualization — IR, USB, RS–232 over IP.

  • - Network — Switch 1G multicast IGMP snooping managed layer 2.

  • - Power — PoE or external power supply (not included).

  • - HDCP — 1.4 and 2.2 compliance.

  • - Video Effects — Video Wall — 1 to 256 screens.



INPUTS

  • 1 Ethernet (LAN/PoE) on an RJ–45 connector, 1 IR on 3.5mm mini jacks (Rx)



OUTPUTS

  • 1 HDMI connector, 2 left and right unbalanced stereo audio on RCA connectors, 1 RS–232 on terminal block connectors, 2 USB (type A) ports, 1 IR on 3.5mm mini jacks (Tx), 1 Ethernet on an RJ–45 connector (daisy–chain LAN)



NETWORK

  • 10M/100M/1000M



NETWORK SWITCH

  • 1G multicast, IMGP snooping non–blocking, Layer 2



STREAMING

  • Unicast and multicast through RTSP (Real Time Streaming Protocol)



CONTROLS

  • Reset button, up and down channel buttons, channel 7–segment display, STATUS, LINK and ON LEDs



IR

  • Wide–band 20kHz~60kHz bidirectional IR transmission



VIDEO ENCODING/DECODING

  • Compression standard JPEG 2000



HDCP

  • 1.4 and 2.2



SCALING AND CROPPING

  • Built in scaling and cropping for flexible display of source content on the decoder output



BIT RATES

  • 4K peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps



RESOLUTION

  • 4096x2160@60Hz, 3840x2160@60Hz, 1920×1200@60Hz, 1920×1080@60Hz, 1864x1050@60Hz, 1856x1392@60Hz, 1792x1344@60Hz, 1728x1080@60Hz, 1704x960@60Hz, 1680×1050@60Hz, 1600×1200@60Hz, 1600x1050@60Hz, 1600×900@60Hz, 1536x960@60Hz, 1440×900@60Hz, 1440x576@60Hz, 1440x480@60Hz, 1400×1050@60Hz, 1366x768@60Hz,1360×768@60Hz, 1280×1024@60Hz, 1280×960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1280×720@60Hz,1224x768@60Hz, 1152x864@60Hz, 1152x720@60Hz, 1024×768@60Hz, 1064x600@60Hz, 1024x384@60Hz, 960x600@60Hz, 848x480@60Hz, 800×600@60Hz, 768x480@60Hz, 720×576@60Hz, 720×480@60Hz, and 640×480@60Hz, 640x400@60Hz, 640x350@60Hz



AUDIO ENCODING/DECODING

  • Compression standard (analog in/out): AAC–LC



CHANNELS (HDMI EMBEDDED AUDIO)

  • PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True–HD, DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution, DTS–HD Master Audio



POWER

  • Source: PoE or 48V DC external power supply (not included)

  • Typical Consumption: 180mA max



ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 0° to +40°C (32° to 104°F)

  • Storage Temperature: –40° to +70°C (–40° to 158°F)

  • Humidity: 10% to 90%, RHL non–condensing



PRODUCT DIMENSIONS

  • 18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H



PRODUCT WEIGHT

  • 0.6kg (1.2lbs) approx.
