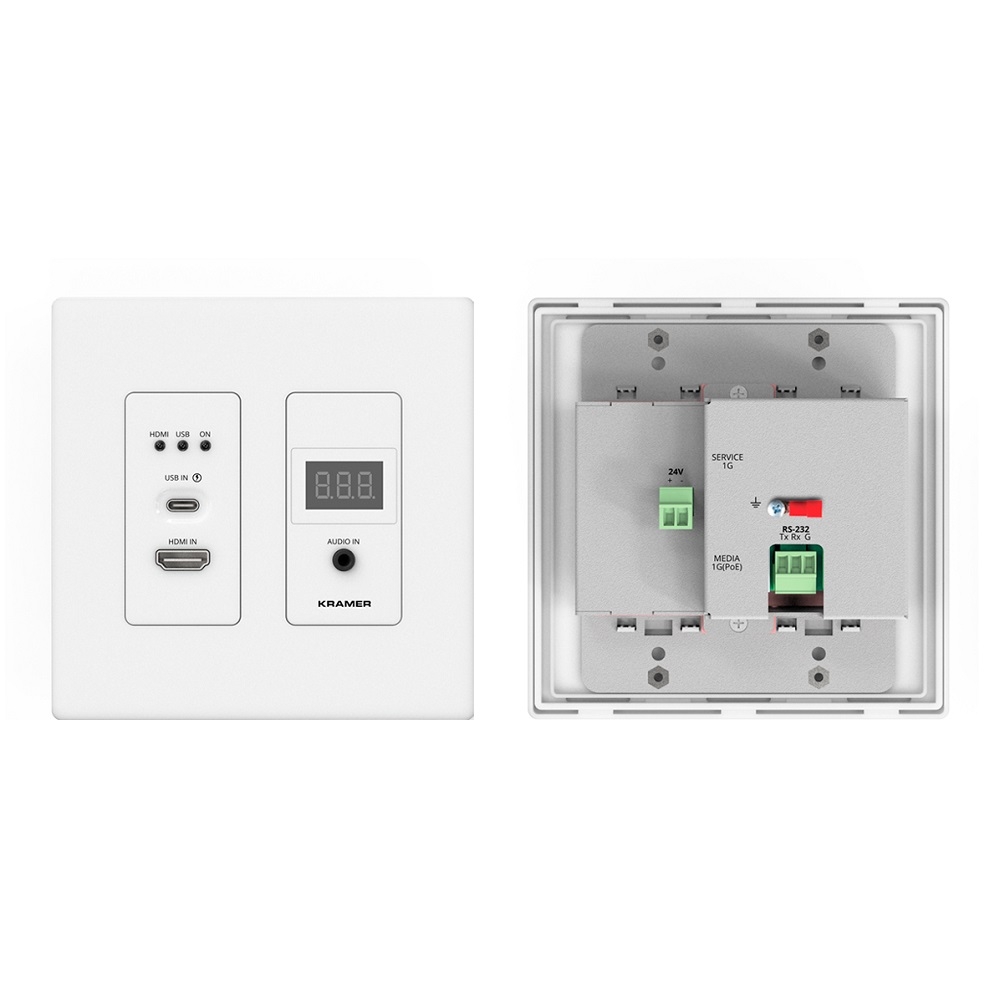

Thiết bị mã hóa tín hiệu hình ảnh gắn tường WP-SW2-EN7
Mô tả ngắn
High–performance, highly–scalable, AVoIP Wal Plate Encoder for 4K60 4:2:0 HDR10 over 1G network
Outstanding end–user experience
Ideal for large–scale deployments
Robust security
Simple planning and rollout
Hotline: 0918 642 886
WP−SW2−EN7/US−D(W) is an advanced wall plate encoder for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable.
- Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
- HDR — Support HDR10 up to 4K@30Hz 4:2:2 12bits.
- Streaming Support — Unicast and multicast.
- Multiple Inputs — One HDMI input and one USB–C input, which support multiple switching policy including Last connected, Priority and Manually.
- Analog Audio Embedding — Embed the unbalanced analog audio into the streaming and HDMI output signal.
- Convenient and Comprehensive Control — Control the unit using intuitive web interface, protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
- Control Gateway — Through P3K or special TCP connection, user can control/communicate with RS232, CEC to the connected devices.
- PoE Support — Option to power with PoE connection from a PoE switch.
INPUTS
-
1 x USB–C In
-
1 x HDMI In
-
1 x Audio In
PORTS
-
2 x Ethernet: On RJ–45 connectors
-
1 x 3.5mm Balanced Analog Audio In
-
1 x RS-232: On a 3–pin terminal block connector
VIDEO
-
Compression Standard: JPEG based, private stream
-
Max Resolution: 4K@60Hz (4:2:0)
USER INTERFACE
-
Indicators: HDMI, USB and ON LEDs, front panel LCD Display
-
Controls: Front panel Reset buttons, front panel channel ID setting buttons, embedded web pages, P3K API commands via Ethernet
POWER
-
Source: PoE on LAN (PoE) port, or 24V DC
-
Consumption: 6W
-
Consumption (With USB-C Charging): 75W
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
-
Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
GENERAL
-
Product Dimensions: 116mm x 46.7mm x 115mm (4.57" x 1.84" x 4.53") W, D, H
-
Shipping Dimensions: 202mm x 135mm x 75mm (7.95" x 5.31" x 2.95") W, D, H
-
Product Weight: 0.5kg (1.10lbs) approx
-
Shipping Weight: 0.7kg (1.54lbs) approx
