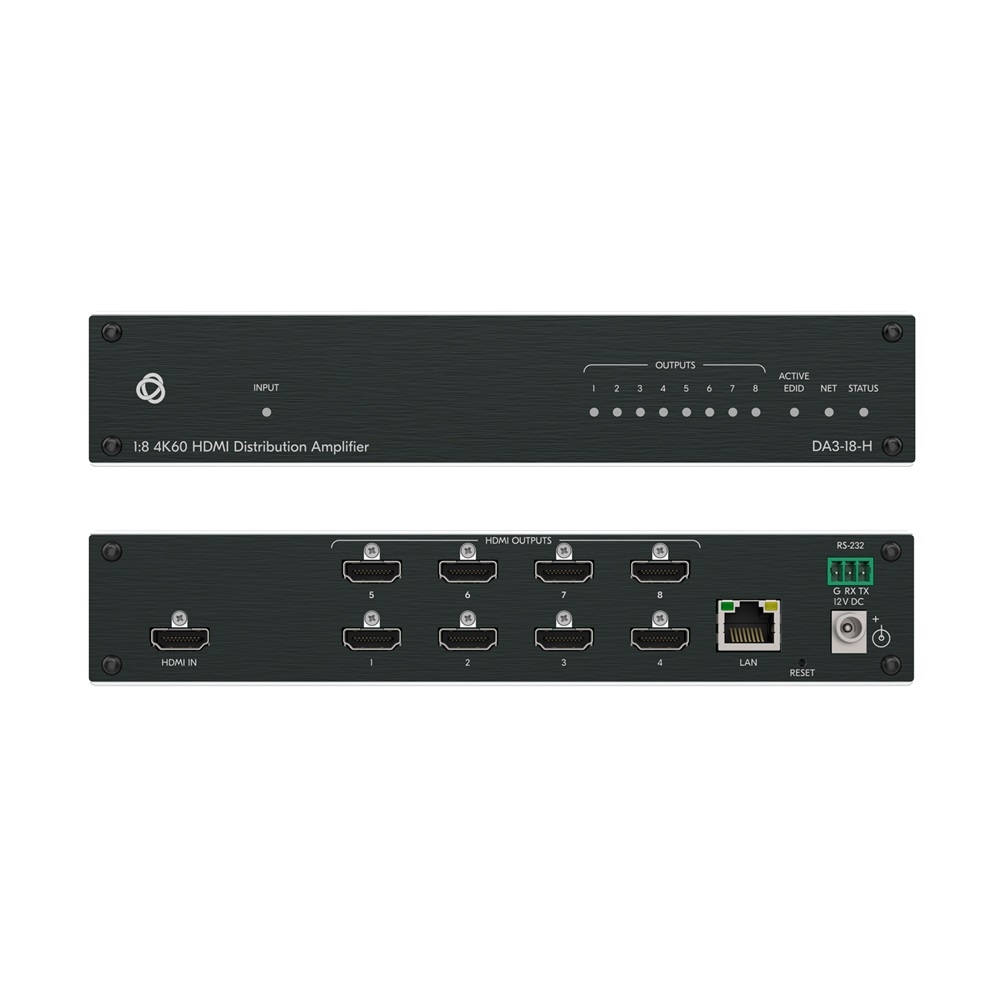

Bộ chia và khuếch đại HDMI DA3-18-H

Kramer DA3-18-H is a 1:8 distribution amplifier for up to 4K 8K HDR, HDMI signals that comply with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and re−clocks the signal and distributes it to eight identical outputs

- Max. Resolution — 4K@60Hz (4:4:4).

- Intelligent EDID Handling — Use connected display EDID, an uploaded EDID or a default EDID, with RGB–force options, to ensure proper operation of HDMI source and display systems.

- Smart Output Scaling — Automatically downscales 4K sources to 1080p for displays that do not support 4K, ensuring compatibility and optimal viewing on all connected screens.

- Force RGB — The user can force native delivery of the HDMI content in RGB color format to improve picture quality or when the display lacks YCbCr capabilities.

- Selectable HDCP Authorization — Allows the user to control whether the input supports HDCP encryption. HDCP protected content is not passed in non–HDCP mode.

- Smart Output Scaling — Automatically downscales 4K sources to 1080p for displays that do not support 4K, ensuring compatibility and optimal viewing on all connected screens.

- Sophisticated CEC mediator with flexible routing options with an ability to control each output individually.

- Independent CEC on/off per each output

- Integrated gateway for RS–232 and CEC commands originated from any controller

- Easy Installation — Compact half–19” 1RU enclosure, suitable for over–ceiling mounting, or side–by–side rack mounting.
