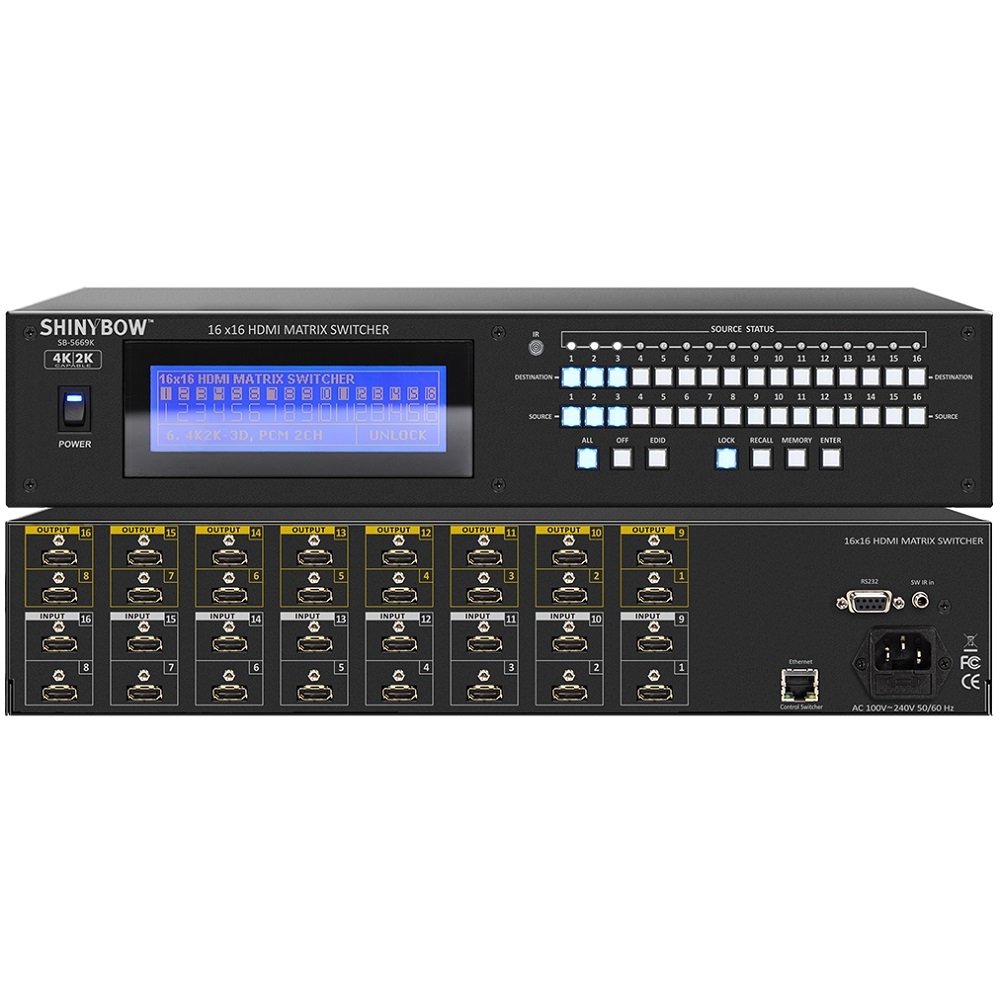

Ma trận chuyển mạch 16x16 HDMI SB-5669K (4K)

The SB-5669k is a professional 16x16 matrix routing switch. Supporting sixteen (16) HDMI™ Inputs. Output supported (16) HDMI™ ports. The SB-5669k is based on the HDMI™ standard 4K2K and supports full resolution HDMI™ Video with embedded EDID, With a signal bandwidth of 340Mhz, there is no signal degradation. High Definition Digital signals can be selected and distributed from any (16) Inputs to (16) outputs. The Switcher is certified as being fully CEC and HDCP 1.3 compliant, full HD 4K2K HDMI™ V1.4a 3D formats, data rates up to 6.75 Gbps. Supports UXGA / WUXGA / DVI 1920x1200 resolution to any HD displays. The SB-5669K has a 1x HDMI™ connector for Input, effectively making this a 16 in x16 out switcher. The EDID management can be selected between seven (7) different modes. Control is provided via Front panel pushbuttons, IR remote, RS-232 or TCP/IP (not a web browser). An RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

01. (16)x HDMI source devices matrix switched to (16)x HDMI output destinations

02. HDMI digital Video TMDS w/embedded HDCP, DVI format and CEC/HDCP 1.3 compliant

03. Worldwide control EDID modes for HDMI full 4K2K (24/25/30 Hz) HD Video resolutions

04. Link speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Support HDMI 4K2K, 1.4a 3D formats

05. Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV. HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)

06. Digital Video TMDS formats Resolution up to 4K2K with Deep color 36-bit

07. Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2

08. Audio Input: Support HDMI standard multi-channel digital audio

09. Audio Output: Support HDMI standard multi-channel digital audio

10. Various User Interface controls :

      • Windows-based GUI control via RS-232 port

      • Front Panel push button

      • IR wireless remote controller

      • Ethernet Switch control

      • Third party RS-232 controller (via simple ASCII)

11. Support worldwide (7)x control function keys: Full function front panel controls : ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER

12. Supports seven (7) worldwide standard embedded EDID modes

13. Automatic scanning input & output status via LCM show on the front panel

14. Support IR Remote and IR Extender with distance up to ~ 984 feet (300M) Maximum

15. Support Universal power adaptor AC100V~240V, 50/60Hz
