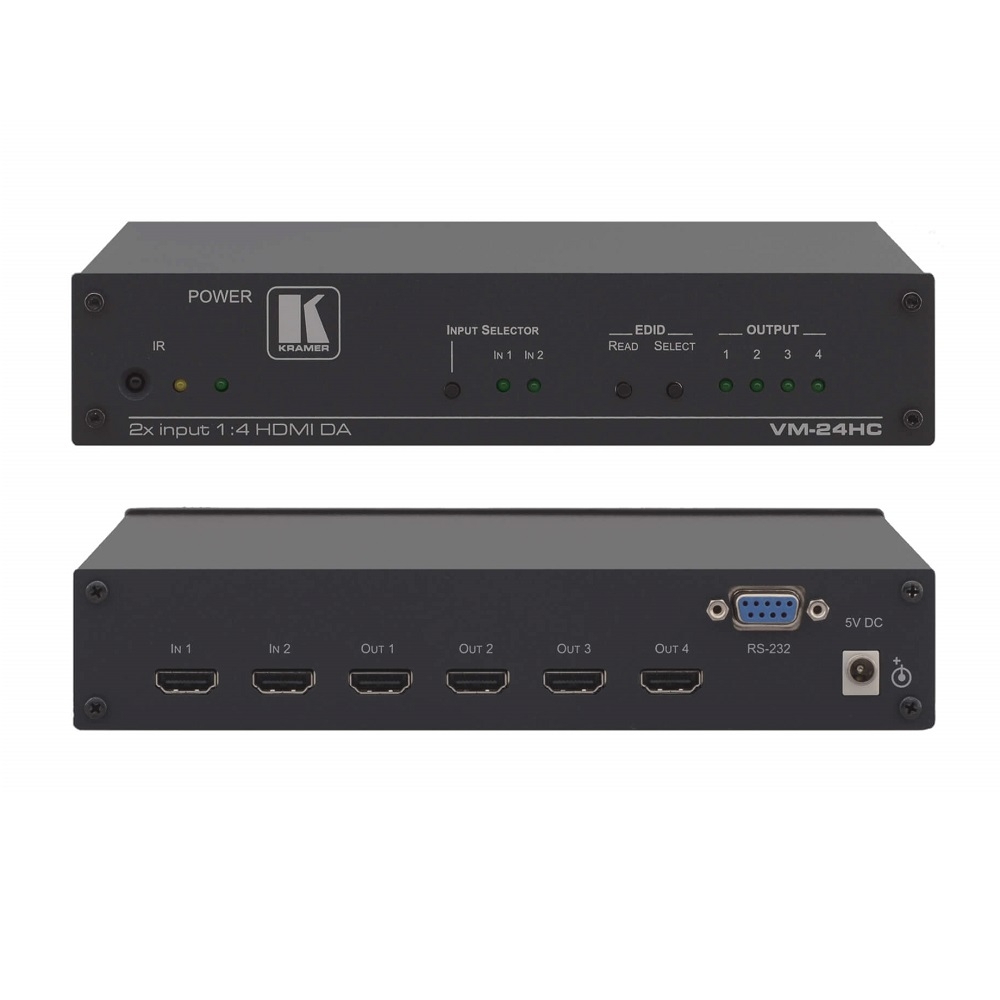

Bộ chia và khuếch đại HDMI VM-24HC
Mô tả ngắn
Kramer VM-24HC 2x1:4 Compact HDMI Switchable DA
Max. Data Rate — 6.75Gbps (2.25Gbps per graphics channel)
I–EDIDPro™
3D Pass–Through.
Control — IR & RS–232
Size — Desktop — Mount 2 units side–by–side in a 1U rack space with the optional RK–1 adapter.
Audio — E
Hotline: 0918 642 886
The VM−24HC is a high−performance switcher and distribution amplifier for HDMI signals. The unit accepts one of two HDMI inputs and distributes the selected signal to four HDMI outputs.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphics channel).
- HDTV Compatible.
- HDCP Compliant.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- EDID Handling — Acquires the EDID from one output, from all connected outputs (auto–mix) or uses a default EDID.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- HDMI Support — With Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
- 3D Pass–Through.
- Flexible Control Options — Front panel, IR remote & RS–232.
- Desktop Size — Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 adapter.
INPUTS
-
2 HDMI connectors
OUTPUTS
-
4 HDMI connectors
MAX. DATA RATE
-
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
-
Supports HDMI and HDCP
CONTROLS
-
EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS–232, IR
INDICATORS
-
POWER, IR, OUTPUT LEDs
POWER CONSUMPTION
-
5V DC, 1.1A
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Power supply, RC–IR3 infrared remote controller
OPTIONS
-
RK–1 19” rack adapter
PRODUCT DIMENSION
-
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
-
0.9kg (1.9lbs) approx
