Hộp âm bàn RTBUS-25xl
Mô tả ngắn
RTBUS-25xl Round Table Mount Multi-Connection Solution - Pneumatic Lid
Elegant in–table solution
Easy to install
Pop–up Lid
Inputs — 15–pin HD, USB, 3.5mm, HDMI, Ethernet.
Hotline: 0918 642 886

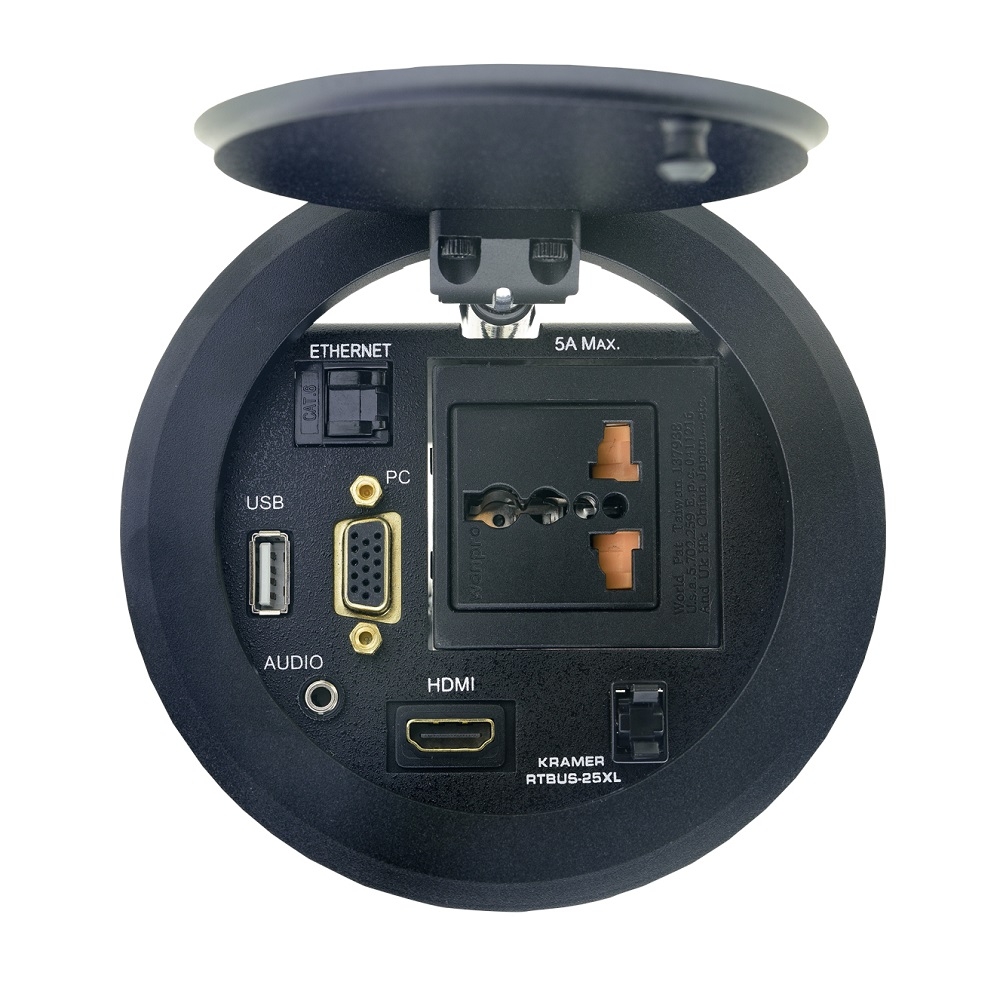

The RTBUS−25xl is an elegant furniture−mounted, modular, round connection bus featuring a pneumatic mechanism for pneumatic lifting and smooth closing of its lid. It is easily installed into a table or podium top and its interface enables you to connect any equipment to systems installed in a room via pass−through connectors for PC, USB, stereo audio, HDMI, Ethernet and power.
NOTE: The power socket and power cord are purchased separately.
- Inputs — 15–pin HD, USB, 3.5mm, HDMI, Ethernet.
- Cover — Pop–up pneumatic lid.
- Cutout Size (Mount Dimension) — 111–114mm diameter.
PORTS
-
1 HDMI: On a female HDMI connector
-
1 VGA: On a 15–pin d–sub connector
-
1 Audio: On a 3.5mm mini jack
-
1 Ethernet: On an RJ–45 connector
-
1 USB: On a female USB type–A connector
PHYSICAL
-
Cutout Size: 111–114mm diameter
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
POWER
-
Power rating varies according to the location and the power socket assembly (purchased separately) installed in the tbus, as follows:
-
Universal: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
USA: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Germany and EU: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Belgium and France: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Italy: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Australia: 100–240V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Israel: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
South Africa: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Switzerland: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
England: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Brazil: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
-
Fuse Rating: T 6.3A 250V
ACCESSORIES
-
Included: Mounting brackets
-
Optional: TBUS AC Power Cord, power socket kits
PRODUCT DIMENSIONS
-
15.70cm x 12.80cm x 15.35cm (6.18" x 5.04" x 6.04" ) W, D, H
PRODUCT WEIGHT
-
0.9kg (1.9lbs) approx.
