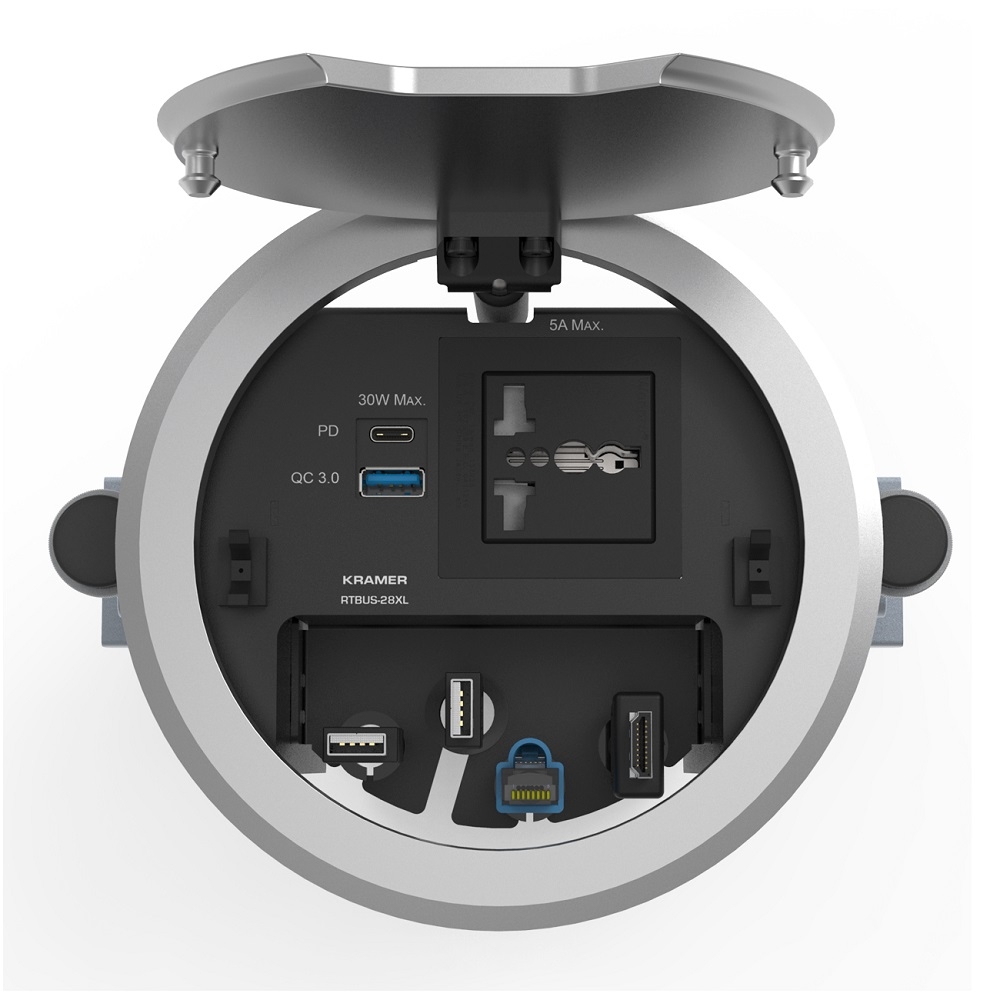

RTBUS-28XL Round Table Connection Bus for Power Socket , USB Charging and Cable Pass–Throughs
Elegant in–table solution
Easy to install
Pneumatic pop–up lid
The RTBUS−28XL is an elegant furniture−mounted, round−connection bus. The RTBUS−28XL features a mechanism for pneumatic lifting and smooth closing of its lid. It is easily installed into a table or podium top. In addition, the unit connects AV equipment to the room’s presentation system.
- RTBUS-28XL Round Table Connection Bus for Power Socket , USB Charging and Cable Pass–Throughs
- Elegant in–table solution
- Easy to install
- Pneumatic pop–up lid
PORTS
USB-C: On a USB–C port (fast charge)
USB Type A: On a USB port (fast charge)
USB FEATURES
Rated USB Output: DC 5 V, 4.2 A
Protocol Type-A: QC 3.0
Protocol Type-C: PD 5
Output Power: 30W max
Output Current Voltage Type−A: 5V=3A, 9V=3A, 12V=2.5A, 20V=1.5A
Output Current Voltage Type−C: 5V=3A, 9V=3A, 12V=2.5A, 15V=2A, 20V=1.5A
Output Current Voltage Type−A & Type−C: V=2.4A
POWER
Power Socket - Universal: 100–240V AC, 50/60Hz, 5A
Power Socket - Universal: maximum 5A per power outlet
Fuse Rating: T 6.3A 250V
Options: TBUS AC Power Cord (C–AC/POWERCORD) power socket kits
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE
Environmental: RoHS, WEEE
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
GENERAL
Product Dimensions (Diameter, H): 15.5cm x 14.6cmm (6.1" x 5.7")
Shipping Dimensions: 27.5cm x 22cm x 19.5cm (10.8" x 8.7" x 7.7") (W, D, H)
