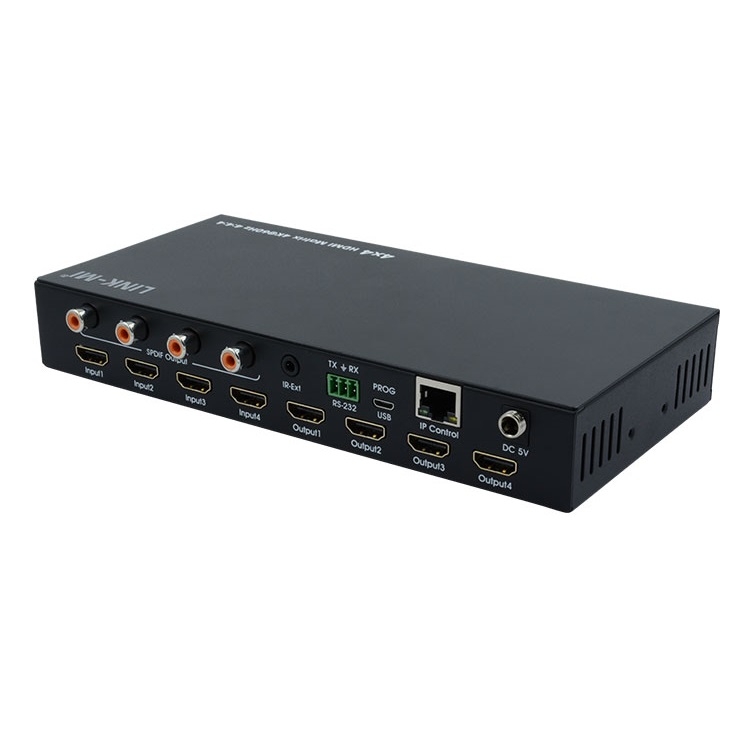

4x4 HDMI Matrix LM-MX09B
Mô tả ngắn
LINK-MI LM-MX09B 4x4 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR
Hotline: 0918 642 886
Features:
1.HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2.Bandwidth upto 18Gbps
3.HDCP2.2 input ,HDCP2.2 output
4.HDCP1.4 input, HDCP1.4 output
5.Support HDR10
6.4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
7.Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
8.Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
9.Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
10.Support firmware updating through USB port
11.Unit size: L216XW105XH34mm
Specifications
|
Operating Temperature |
23°F to 113°F (-5°C to 45°C) |
|
Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
|
Resolution |
480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
|
HDCP Compliant |
HDCP2.2 and HDCP1.4 |
|
Output Video |
HDMI2.0 and HDMI 1.4 |
|
Audio Format Supported |
PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos |
|
RS-232 serial port |
3PIN terminal block connectors |
|
Ethernet port (IP control) |
RJ45, female |
|
IR Ext port |
1x3.5mm stereo jack |
|
USB port |
Micro 5P female |
|
Bandwidth |
18 Gbps |
|
Default IP |
192.168.1.168 |
|
Rack-Mountable |
Rack ears included |
|
Dimensions(WxHxD) |
L216XW105XH34mm |
|
Net Weight |
0.72kg |
|
Power consumption |
13W(Max) |
