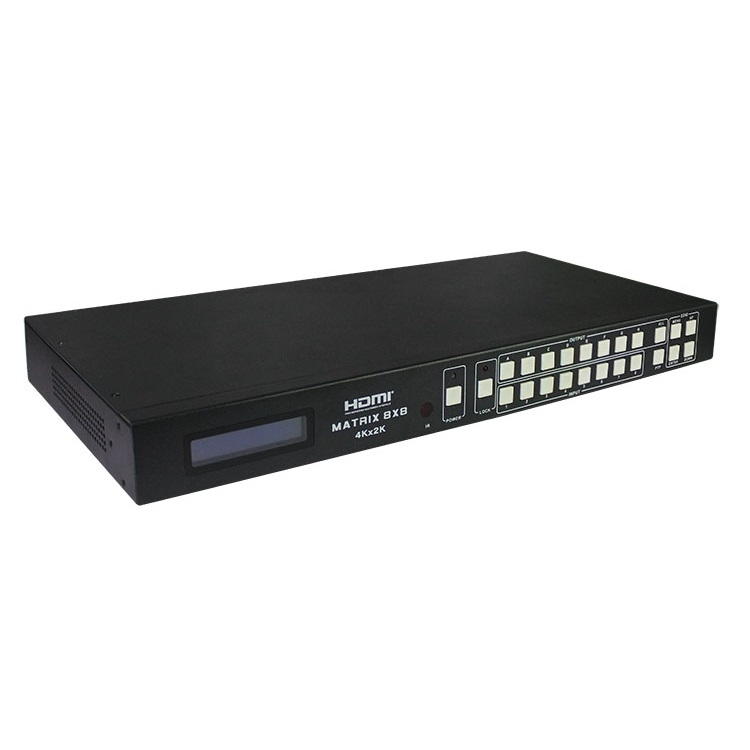

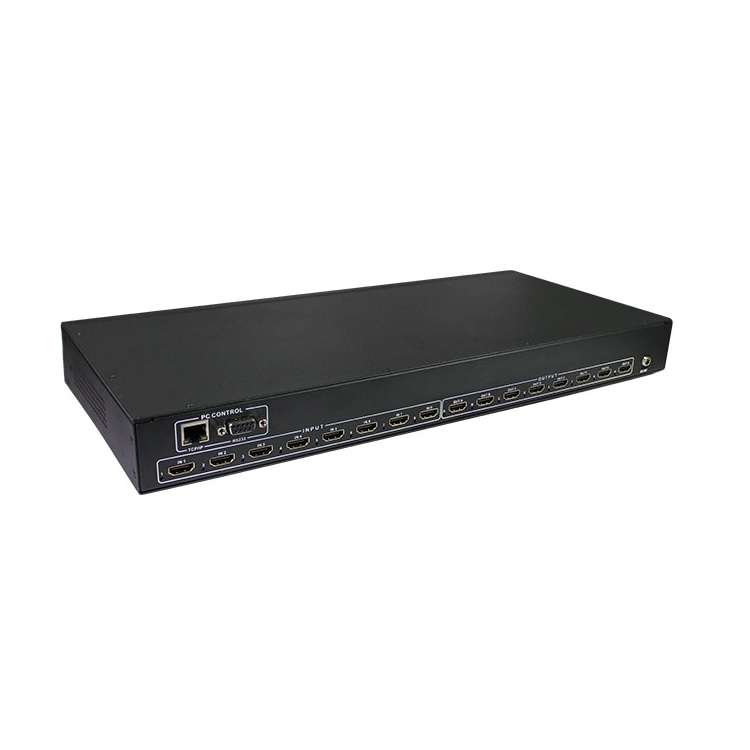

8x8 HDMI Matrix LM-MX88B
Mô tả ngắn
LINK-MI LM-MX88B 8x8 HDMI Matrix Supports LPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio transmission
Hotline: 0918 642 886
Features:
1. Supports HDCP2.2 input.
2. HDMI V1.4 supports: 4K x 2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
3. DeepColor support 48/36/30/24-bit
4. Supports LPCM 7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio transmission
5. Allows any HDMI display to view any HDMI source at any time
6. 8-input ports support independent EDID
7. Supports RS-232, remote control, on-panel control and TCP/IP Control
8. Front-panel LCD display for status feedback
Specifications:
Video Bandwidth: 297 MHz
Support Video Resolution: 480i,576i,480p,576p,720p,1080i,1080p@24/30/50/60Hz, 4K@30Hz, 1080P3D@60Hz
Input Ports: 8×HDMI, 1×RS-232, 1xRJ-45(Control)
Output Ports: 8×HDMI
ESD Protection Human-body Model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
Power Supply: 12 V/2.5 A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 440 mm (W)×200 mm (D)×45 mm (H)
Weight: 2310 g
Chassis Material: Metal
Silkscreen Color: Black
Operating Temperature: 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature: −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity: 20~90 % RH (non-condensing)
Power Consumption: 23 W(max)/0.5w(Standby)
