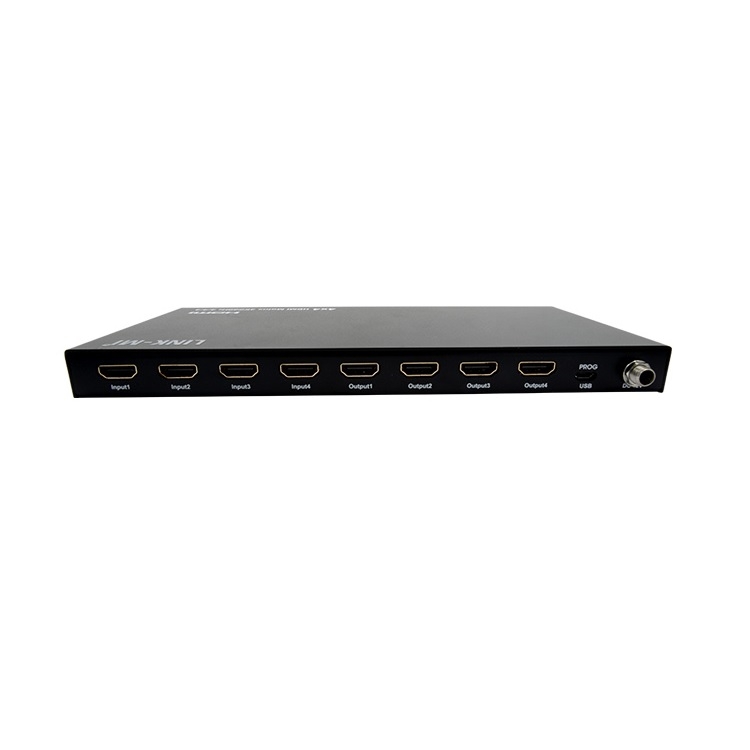

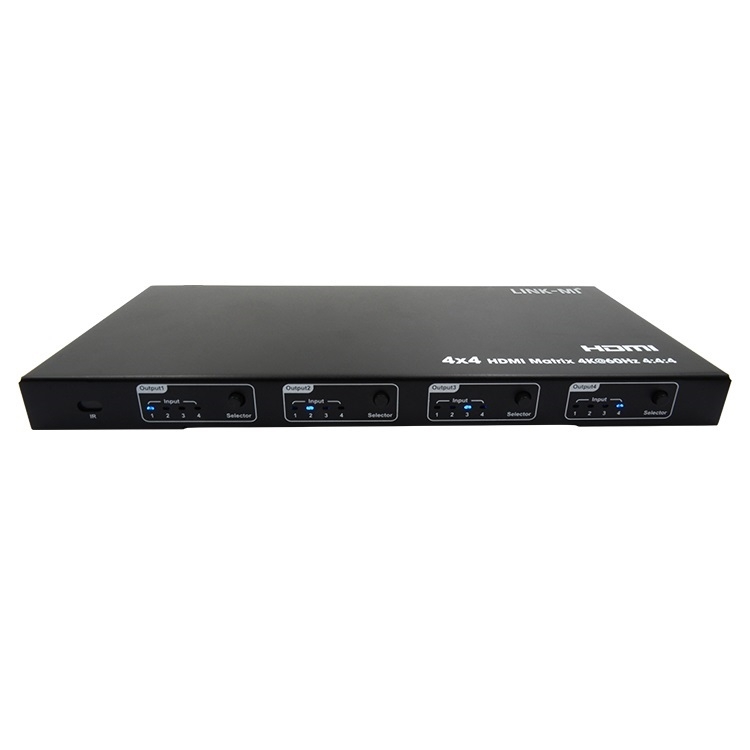

4x4 HDMI Matrix LM-MX14
Mô tả ngắn
LINK-MI LM-MX14 4x4 HDMI Matrix Switch Support 4K@60Hz YUV4:4:4, 18Gbps, HDCP2.2
Hotline: 0918 642 886
Features:
1. 4x4 HDMI Matrix, 4x HDMI Inputs, 4x HDMI Outputs
2. Support upto 4K@60Hz YUV4:4:4 8bit
3. Bandwidth up to 18 Gbps
4. HDCP 2.2 / HDCP1.4 compliant
5. Support Panel button, IR remote control
6. Support Micro USB port for firmware upgrade
7. Support HDR10, HDR, Dolby vision, deep color upto 12bit
8. Support LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X
9. Support EDID management(Copy EDID,Build-in EDID)
10. Support 4K60Hz input downscaler to 1080p
Specifications:
|
Bandwidth |
18 Gbps |
|
Resolution |
480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
|
Operating Temperature Range |
0 to +40°C (32 to +104°F) |
|
Operating Humidity Range |
5 to 90 % RH (no condensation) |
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Support |
HDR10,HDR,Dolby vision |
|
Deep color |
8bit,10bit,12bit |
|
Output Video |
HDMI 2.0+HDCP1.4/2.2 |
|
Output Audio |
Support LPCM7.1/24-bit/96khz,Dolby Atmos and DTS-X |
|
Dimensions(WxHxD) |
L239.2XW105.8XH20mm |
|
Net Weight |
0.76 kg |
|
Power consumption |
12.3W(Max) |
