Features:
1.HDMI2.0, HDCP2.2/HDCP1.4 compliant
2.Support video format up to 4k2k@60Hz with 24bit RGB/bCr 4:4:4/YCbCr 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0
3.Support color space conversions among RGB, YCbCr4:4:4,YCbCr4:2:2 and xvYCC video formats
4.Support all HDMI 3D formats up to 2160p@30
5.Support high resolution VESA mode video format up to QSXGA@60Hz
6.Support reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz, compressed audio(IEC 61937), DSD, DST, DTS and HBR
7.Support simultaneous HDMI Coax and L/R audio outputs
8.Support smart EDID management
9.Support RS-232, remote control, on-panel control and TCP/IP Control
Specifications:
- Video Bandwidth: 594MHz [18Gbps]
- Support Video Resolution: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/50/60, 2160p24/25/30/50/60;

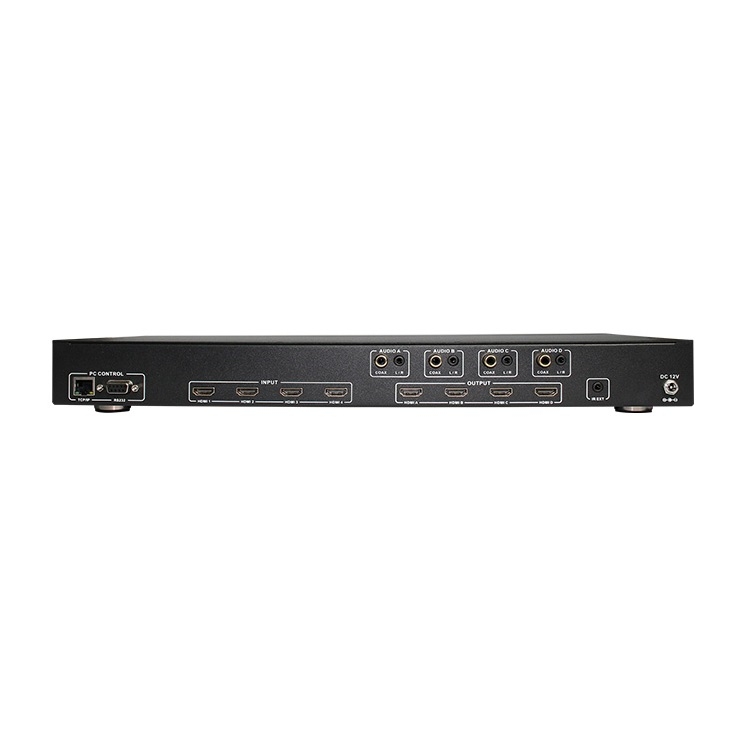

- Input Ports: 4×HDMI, 1×IR Receiver, 1×RS-232, 1xRJ-45(Control)
- Output Ports: 4×HDMI, 4×Toslink, 4×L/R
- HDMI connector: Type A 19 pin female
- RJ-45 connector :WE/SS 8P8C
- 3.5mm connector: IR Receiver
- ESD Protection Human-body Model: ± 8kV (Air-gap discharge); ± 4kV (Contact discharge)
- Power Supply: 12V/2.5A DC (US/EU standards, CE/FCC/UL certified)
- Dimensions: 440 mm (W)×200 mm (D)×45 mm (H)
- Weight: 1820 g
- Chassis Material: Metal
- Silkscreen Color: Black
- Operating Temperature: 0 ºC~40 ºC/32 ºF~104 ºF
- Storage Temperature: −20 ºC~60 ºC/−4 ºF~140 ºF
- Relative Humidity: 20~90 % RH (non-condensing)
- Power Consumption: 30 W(max)/0.5w(Standby)
