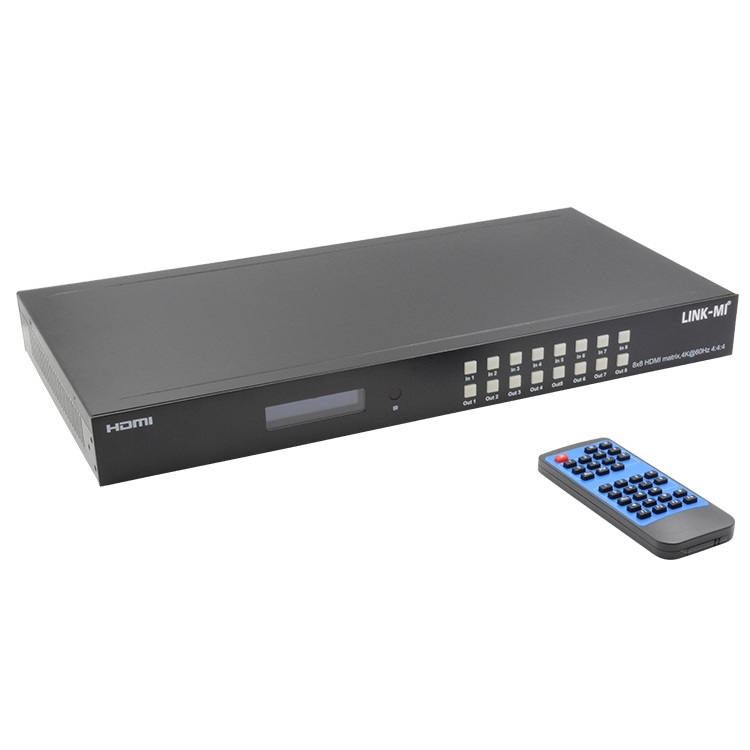

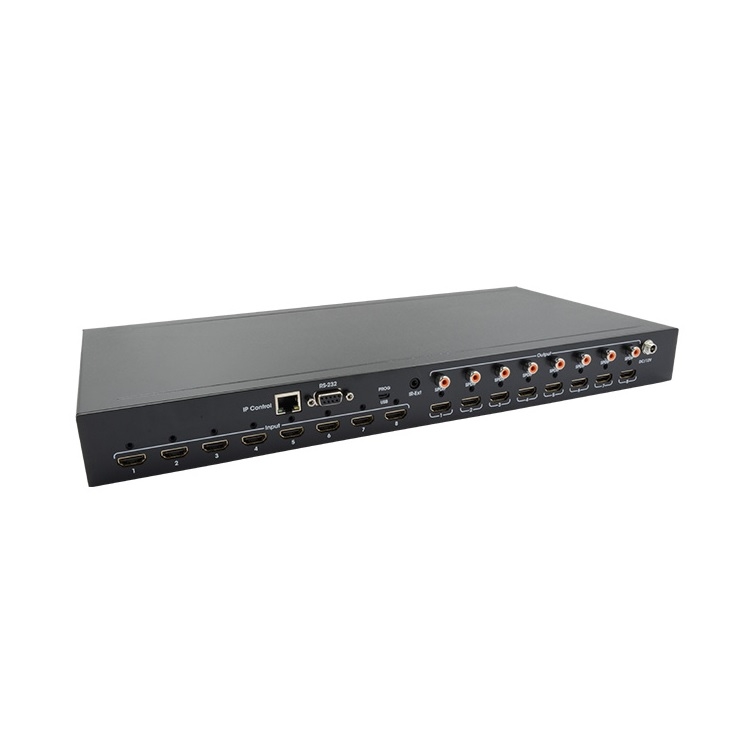

8x8 HDMI2.0 Matrix LM-MX11B
Mô tả ngắn
LINK-MI LM-MX11B 8x8 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR
Hotline: 0918 642 886
Features:
- HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
- Support 3D
- Bandwidth upto 18Gbps
- HDCP2.2 input ,HDCP2.2 output
- HDCP1.4 input, HDCP1.4 output
- Support HDR10
- 8xHDMI Input, 8xHDMI output with 8xSPDIFAudio
- Any one of the 8 Ultra HD sources to any one of the 8 Ultra HD displays
- Support Dolby True HD and DTS-HD master audio
- Micro USB interface for user to upgrade firmware
- Controllable via front-panel buttons, IR remote, RS232, IP , Web GUI Control
- 1U rack design, easy installment
- Unit size: L440XW220XH44.5mm
SPECIFACATIONS:
|
Bandwidth |
18 Gbps |
|
Resolution |
480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
|
Video Input Connectors |
8xHDMI Type A, 19-pin, female |
|
Video Output Connectors |
8xHDMI Type A, 19-pin, female |
|
RS-232 serial port |
DB9, female |
|
Ethernet port (IP control) |
RJ45, female |
|
IR Ext port |
1x3.5mm stereo jack |
|
Rack-Mountable |
Rack ears included |
|
Dimensions(WxHxD) |
L440XW220XH44.5mm |
|
Net Weight |
2.8kg |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Storage Temperature |
14°F to 140°F (-10°C to 60°C) |
|
Power consumption |
23W(Max) |
